A great combo of HV6 4 slots Rotary table with with double tailstock and dividing plates For Milling Machine:

HV6 Rotary Table:

1. Manufactured from High grade seasoned casting and powder coated wrinkled finish for smooth looks. Precision ground chuck and overall smooth surface.

2. Gear Ratio 90:1 Center Bore MT-2. T Slot 16mm.

3. Graduated 360 degree around its circumference.

4. Horizontal Height : approx. 80mm from base to top surface of chuck, Table Dia. : 150mm, Table Height : 80mm, Centre Height : 105mm.

5. One revolution of the hand wheel = 4' of rotation of the table and the vernier scale is calibrated to 10 sec.

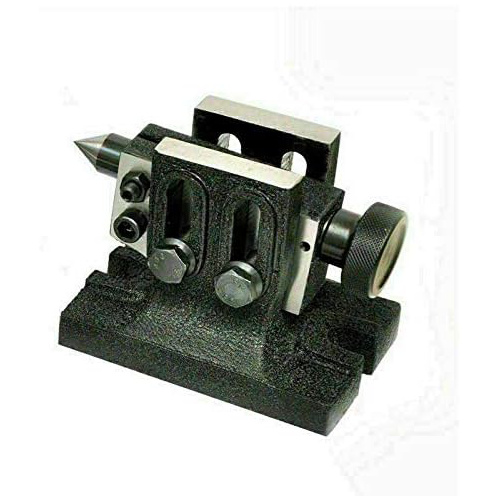

Double Bolt Tailstock:

1. Its made of good Quality of Cast Iron.

2. Height is adjustable from 80 mm to 110 mm,

3. It is used on our HV4 HV6 Rotary Table.

4. It is used when between centre work is required.

5. These are adjustable for different heights Having fine feed centre point and the centre tip is hardened and Ground.

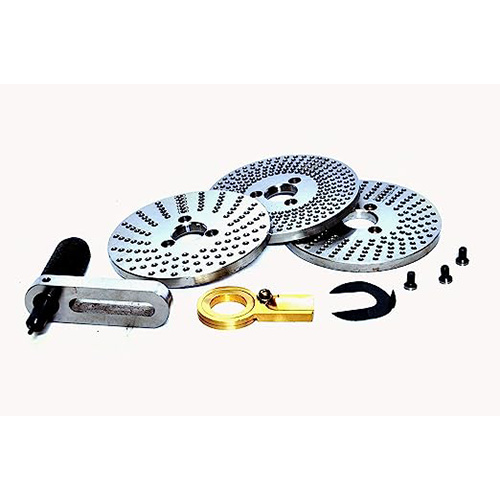

Steel Dividing Plates:

1. Set of 3 dividing plates designed to fit our HV4 & HV6 Rotary Tables.

2. Diameter of the Plates is 100 mm, Centre Hole of the Plate is 21 mm and Thickness 7 mm.

3. No. of Holes in each Plate Plate A- 15, 16, 17, 18, 19, 20, Plate B- 21, 23, 27, 29, 31, 33 Plate C- 37, 39, 41, 47, 49.

4. It is supplied with a brass stopper key, Bracket, Crank Handle & fixing screws.

5. A set of Steel Dividing Plates for Indexing with all required Accessories.
